TK PHARMAThanks to our state-of-the-art technology, CEIV quality certified facilities and team, we transport your pharmaceutical shipments as being aware of the responsibility we assume. We handle human life by transporting your medication shipments meticulously within the time and temperature range, as required, to the destinations they are intended. We carry health all around the world.
The shipments, which are transported as part of the pharmaceutical products, are accepted by dedicated staff members from their dedicated gates at the time of acceptance since they require preservation, transportation and handling at specific temperature ranges. Pharmacetuticals are privileged with respect to the ramp services that are performed during the course of loading the cargo on board the aircraft and unloading the same. Such products are ensured to be preserved successfully thanks to the special rooms, covering an area of 3.500 square meters at four different temperature range, available in SMARTIST with high technological standards.
The requests for containers, received from our customers, are checked and assessed by the professionalized team of Turkish Cargo. The installation/configuration and temperature settings of such containers are performed within certain time intervals, and the battery-charging changes are also performed by the specialized teams.
Active and Passive Solutions
Active Solutions
- Active Temperature-Controlled Container
Any cargo, which includes pharmaceutical products with high sensitivity to temperature, such as the vaccines, insulin and anti-cancer drugs is preserved at the conditions and capacities as requested by our customers, even during the long-haul flights, thanks to the agreements with Envirotainer, DoKaSch and CSafe, the international container suppliers. Any temperature change that might be experienced throughout the course of the process can be reported to our customers by means of the data recording feature.
- Thermal Dolly
Thermal Dolly refers to the active temperature-controlled equipments which are used for the transfers of the time and temperature-sensitive cargo from the temperature-controlled rooms in the warehouse to the ramp or vice versa. Thermal Dolly is also used for the temporary storage of the time and temperature-sensitive cargo during the shipments with short connection periods (between 1-4 hours).
Passive Solutions
- Single Use Thermal Cover
Single use thermal cover that is used for heat isolation of the time and temperature-sensitive pharmaceutical products, which are required to be transported at a certain temperature-controlled environment, and for protecting such products against the external environment. If and when so requested by the respective shipper, it will be ensured that the time and temperature-sensitive cargo is received by means of the thermal cover at the station of departure or at the intermediate points.
The services provided by means of carriage by temperature-controlled trucks, active temperature controlled containers and thermal dollies for connection shipments with thermal cover are subject to additional charge.
- va-Q-tainer
The va-Q-tainer is an advanced passive container, perfect for the global transportation of clinical and pharmaceutical goods. This container simplifies handling in challenging environments by providing qualified performances of more than true 120 hours without the need of recharging or re-icing. By using the outstanding technology of Phase Change Material the high tech solutions don´t require dry ice to maintain temperatures as low as -60 °C.
Active Solutions
Envirotainer RAP E2
- Heating or Cooling (Electrical Based)
- Temp. Range 0°C to +25 °C
- 4US or 5EURO Pallets
- Suggested Loadable Max. Pallet Height 125cm
- ULD Type LD9
Active Solutions
Envirotainer RAP T2
- Refrigerated (Dry-ice Based)
- Temp. Range -20°C to +20 °C
- 4US or 5EURO Pallets
- Suggested Loadable Max. Pallet Height 130cm
- ULD Type LD9
Active Solutions
Envirotainer RKN T2
- Refrigerated (Dry-ice Based)
- Temp. Range -20°C to +20 °C
- 1US or 1EURO Pallet
- Suggested Loadable Max. Pallet Height 122cm
- ULD Type LD3
Active Solutions
Envirotainer RKN E1
- Heating or Cooling (Electrical Based)
- Temp. Range 0°C to +25 °C
- 1US or 1EURO Pallet
- Suggested Loadable Max. Pallet Height 130cm
- ULD Type LD3
Passive Solutions
Thermal Dolly
- Temperature Range: -20 / +20 °C degree
- Loadability: 1 PMC/PLA or 5 Euro Pallets
- Maximum Load Capacity: 7000 kg
- Maximum Pallet Height: 170 cm for LD Dollies/ 250 cm for MD dollies
Active Solutions
CSafe RAP
- Heating or Cooling (Electrical Based)
- Temp. Range +4°C to +25 °C
- 4US or 5EURO Pallets
- Suggested Loadable Max. Pallet Height 125cm
- ULD Type LD9
Active Solutions
Dokash Opticooler RKN
- Heating or Cooling (Electrical Based)
- Temp. Range +2°C to +30 °C
- 1US or 1EURO Pallet
- Suggested Loadable Max. Pallet Height 120cm
- ULD Type LD3
Active Solutions
Dokasch Opticooler RAP
- Heating or Cooling (Electrical Based)
- Temp. Range +2°C to +30 °C
- 4US or 5EURO Pallets
- Suggested Loadable Max. Pallet Height 130cm
- ULD Type LD9
Advanced Passive Solutions
Va-Q-tainer TWIN X Closed
- Temp. Range -60°C to +25 °C
- 2US or 2EURO Pallet
- Suggested Loadable Max. Pallet Height 122cm
Advanced Passive Solutions
Va-Q-tainer US X Closed
- Temp. Range -60°C to +25 °C
- 1US or 1EURO Pallet
- Suggested Loadable Max. Pallet Height 117cm
Advanced Passive Solutions
Va-Q-tainer XL X Closed
- Temp. Range -60°C to +25 °C
- 1US or 2EURO Pallet
- Suggested Loadable Max. Pallet Height 122cm
Advanced Passive Solutions

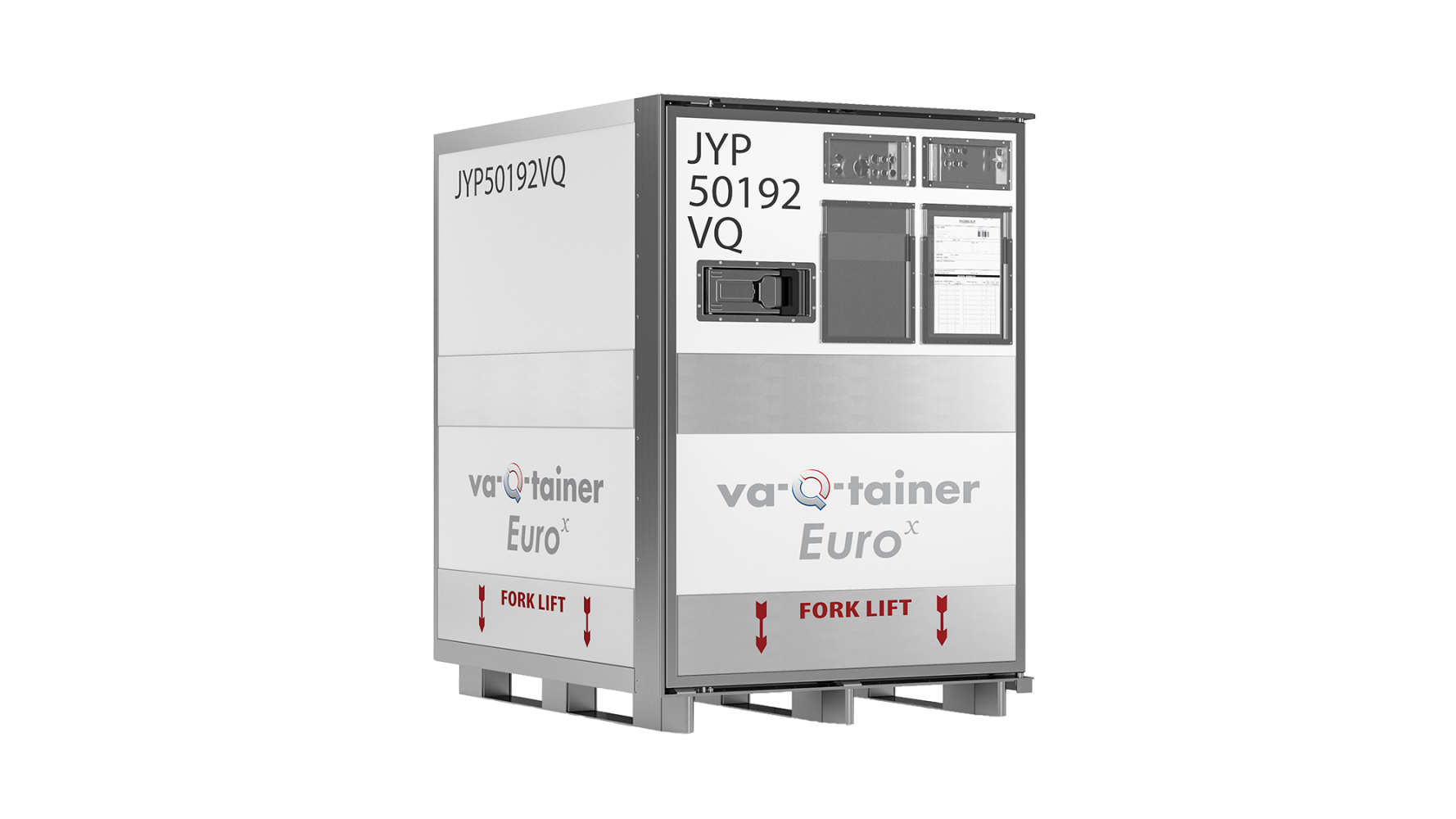

Va-Q-tainer EURO X Closed
- Temp. Range -60°C to +25 °C
- 1EURO Pallet
- Suggested Loadable Max. Pallet Height 117cm
Active Solutions
Envirotainer Releye RAP
- Heating or Cooling (Electrical Based)
- Temp. Range +5°C to +20 °C
- 4US or 5EURO Pallet
- Suggested Loadable Max. Pallet Height 130cm
- ULD Type LD9
Active Solutions
Envirotainer Releye RLP
- Heating or Cooling (Electrical Based)
- Temp. Range +5°C to +20 °C
- 2US or 3EURO Pallet
- Suggested Loadable Max. Pallet Height 130cm
- ULD Type LD7
Advanced Passive Solutions
Skycell 1500 X
- Temp. Range +2°C to +25 °C
- 1US or 2EURO Pallet
- Suggested Loadable Max. Pallet Height 130cm
Advanced Passive Solutions
Skycell 2500 CRT
- Temp. Range +15°C to +25 °C
- 1US or 2EURO Pallet
- Suggested Loadable Max. Pallet Height 122cm
Advanced Passive Solutions
Skycell 1500 C
- Temp. Range +2°C to +8 °C
- 1US or 1EURO Pallet
- Suggested Loadable Max. Pallet Height 122cm
Advanced Passive Solutions
Skycell 2500 C
- Temp. Range +2°C to +8 °C
- 1US or 2EURO Pallet
- Suggested Loadable Max. Pallet Height 122cm
Advanced Passive Solutions
Skycell 1500 F
- Temp. Range -15°C to -30 °C
- 1US or 2EURO Pallet
- Suggested Loadable Max. Pallet Height 107cm
Advanced Passive Solutions
Skycell 1500 DF
- Temp. Range -60°C to -80 °C
- 1US or 2EURO Pallet
- Suggested Loadable Max. Pallet Height 112cm
Advanced Passive Solutions
Skycell 1500 CRT
- Temp. Range +15°C to +25 °C
- 1US or 1EURO Pallet
- Suggested Loadable Max. Pallet Height 122cm
Advanced Passive Solutions
Sonoco “Pegasus ULD”
- Temp. Range +2°C to +8°C
- 1 US or 1 EURO Pallet
- Suggested Loadable Max. Pallet Height 122cm
- ULD Type AKP
Active Solutions
Csafe RKN
- Heating or Cooling (Electrical Based)
- Temp. Range +4°C to +25 °C
- 1US or 1EURO Pallet
- Suggested Loadable Max. Pallet Height 125cm
- ULD Type LD3
-
